Hongjin Ultra-Light Carbon Fiber ADV: The Performance Revolution in All-Carbon Electric Motorcycles
Product Introduction

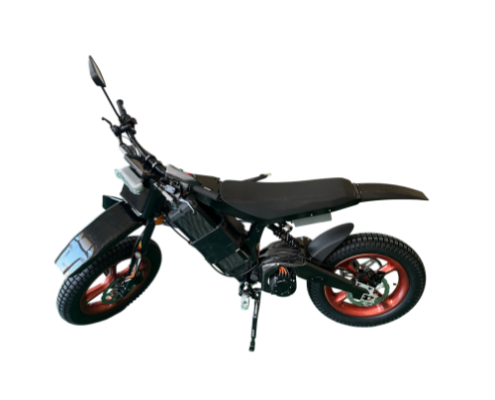

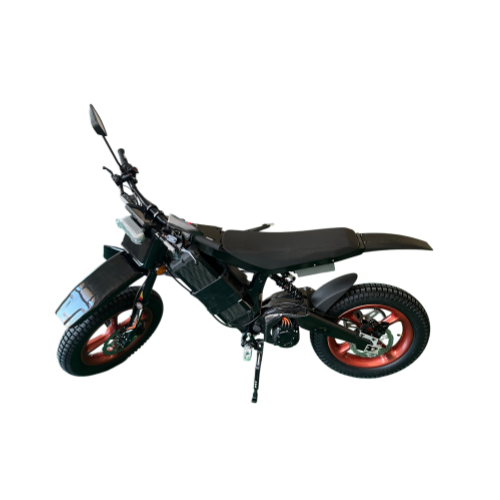

The Hongjin Denzel ADV All-Terrain Carbon Fiber Electric Motorcycle is led by Professor Guli Yang (Russian nationality), a mechanical engineering professor at Weihai Foreign Affairs University. After ten years of research and development, multiple technological iterations have elevated this motorcycle to a new pinnacle. Almost every visible structural component of the bike is crafted from high-performance carbon fiber material, achieving unprecedented weight reduction. At only 70 kg, it offers not only extreme lightness but also a top speed of 100 km/h and an impressive 150 km range. And that’s just the beginning—there are more surprises waiting for you. Inquiries welcome.
Product Details
Chapter 1: Carbon Fiber Art – Redefining the Body Philosophy
At the heart of the Hongjin Ultra-Light lies an all-carbon-fiber monocoque structure.
Full Carbon Fiber Body: Ultimate lightweight design—frame, swingarm, and wheels are all made from high-modulus carbon fiber, delivering unmatched torsional rigidity and durability.
The exterior features a striking 3K carbon weave pattern for a three-dimensional visual impact.
Design Serving Performance: Golden-ratio ergonomic geometry with an 830 mm seat height suitable for more riders; 1030 mm handlebar height ensures comfortable posture; 1370 mm wheelbase balances agility and stability.
A generous 260 mm ground clearance allows both smooth urban commuting and light adventure riding over curbs or rough terrain.
Functional Aesthetics in Details: Composite materials extend to fenders, fairings, and battery casings, maintaining the beauty of carbon fiber while reducing weight further.
Chapter 2: Heart & Nerves – Electric Drive Intelligence Core
A lightweight frame needs a powerful heart and a smart brain.
Fierce & Efficient Motor: Equipped with a QS 120-60 mid-drive motor, rated at 3 kW and peaking at 15 kW. Paired with the Denzel Orient 450A intelligent controller, it unleashes 350 Nm rear-wheel torque, instant acceleration, and a top speed of 100 km/h.
Dual-Mode Smart Control:
Sport Mode:Unleash full power for top speed and thrilling acceleration.
Eco Mode:Optimize energy use for longer range during daily commutes.
Additional Intelligence: Cruise control, adjustable speed limits, regenerative braking (converting brake kinetic energy into electricity), and a unique “parking system” for safety and convenience.
Full-Domain Smart Connectivity: Bluetooth links to a dedicated app, turning your phone into an advanced dashboard.
Monitor vehicle status, battery health, motor and controller temperature, and customize settings. Built-in remote alarm keeps security at your fingertips.
Chapter 3: Endurance & Adaptability – Ready for Every Journey
Confidence for every departure.
Range & Energy: Powered by a 72 V 60 Ah high-performance lithium battery, offering up to 150 km range under mixed conditions, even with two riders.
Comes standard with an IP67-rated 72 V 10 A fast charger, compatible with global voltages (100–240 V) for worry-free charging.
All-Terrain Suspension System: Front DNM FAT USD-8 inverted hydraulic fork; rear DNM 220 mm hydraulic shock (preload adjustable).

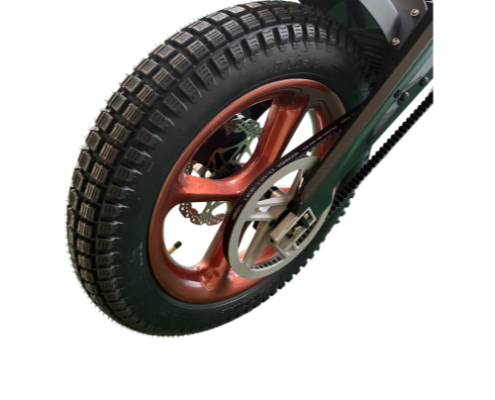

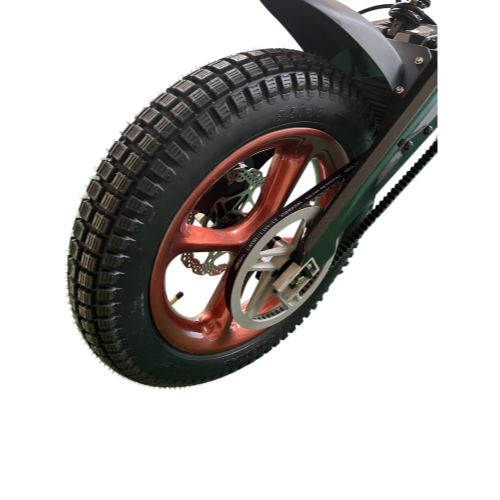

Filters bumps effortlessly. Fitted with 16-inch all-terrain tires, ensuring stability on asphalt or gravel alike.

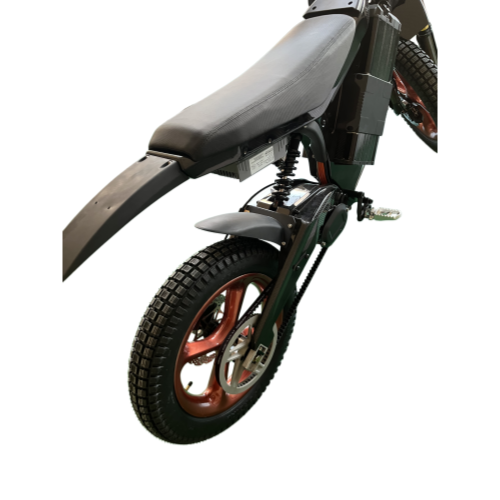

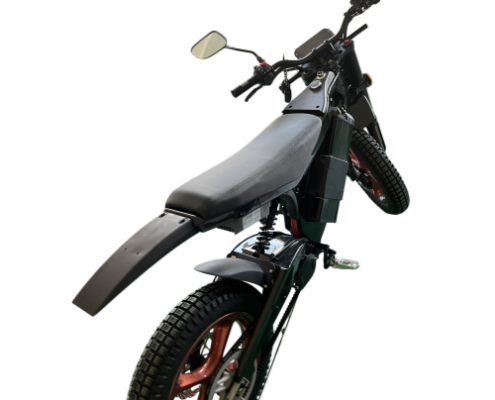

Comfort & Load Capacity: Long-distance seat design for sustained comfort; robust aluminum alloy rear rack for extra cargo space; maximum load capacity 180 kg, enough for you, a passenger, and gear for exploration.
Chapter 4: How Hongjin Ultra-Light ADV Empowers Your Life
Urban Commuter: Extremely light and nimble, slicing through traffic with ease; zero emissions, zero fuel costs, and convenient charging via home sockets or dedicated stations.
Tech Pioneer Rider: Enthusiast of cutting-edge materials and smart tech, enjoying data-driven riding via app connectivity and the head-turning appeal of carbon fiber aesthetics.
Weekend Adventurer: With a 150 km range, light body, and strong clearance, nearby mountains, lakesides, and forest trails become your playground.
Technical Specifications Overview
| Item | Parameter |
| Core Structure | Frame / Swingarm / Wheels: Carbon Fiber |
| Dimensions | L × Wheelbase × Seat Height: 1930 × 1370 × 830 mm |
| Powertrain | Motor: QS120-60 (Peak 15 kW) / Controller: Denzel Orient 450A |
| Performance | Top Speed: 100 km/h / Max Torque: 350 Nm |
| Battery & Range | 72 V 60 Ah / ~150 km range / Charger: 72 V 10 A (IP67) |
| Suspension & Tires | Front Fork: DNM USD-8 / Rear Shock: DNM / Tires: 3.5-16 All-Terrain |
| Smart Features | Multi-function color display, APP connectivity, regen braking, cruise control, remote alarm |
| Practical Data | Curb Weight: 70 kg / Max Load: 180 kg / Ground Clearance: 260 mm |
| Warranty | 1-Year Official Warranty |
Act Now – Define the Future of Riding
The Hongjin Ultra-Light ADV is a leap beyond tradition. What we offer is not just a mode of transport, but a mobile masterpiece combining top-tier materials science, electric drive technology, and smart connectivity.
Reserve now and receive:
Priority delivery rights
Original toolkit & maintenance kit
One-on-one setup guidance from a senior riding consultant
You May Ask:
Q: How durable and safe is the carbon fiber frame?
A: Our carbon fiber components are manufactured using aerospace-grade processes and pass fatigue, impact, and vibration tests exceeding national standards, backed by comprehensive structural warranty during the coverage period.
Q: Will such a 70 kg bike feel unstable at high speeds?
A: Absolutely not. Precision aerodynamics, a long 1370 mm wheelbase, and low-center-of-gravity battery placement ensure excellent high-speed stability.
Q: Battery lifespan and replacement cost?
A: The pack uses automotive-grade cells and an intelligent BMS for long cycle life. For details on lifespan and replacement policy, please contact our customer service team.
