Applications of 3K Plain Weave Glossy Carbon Fiber Sheet

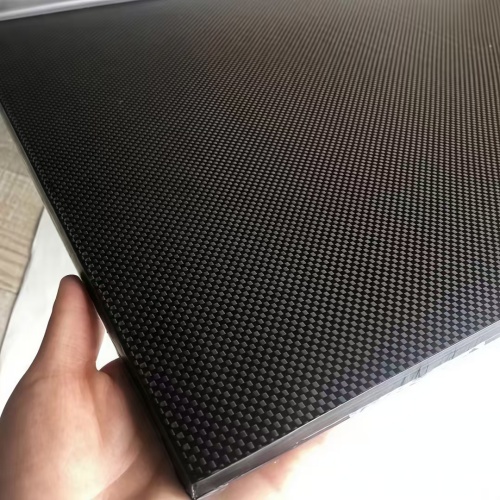

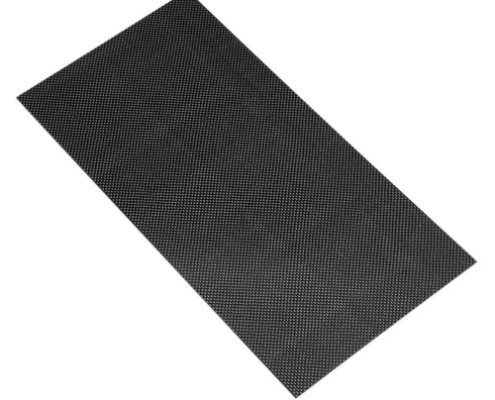

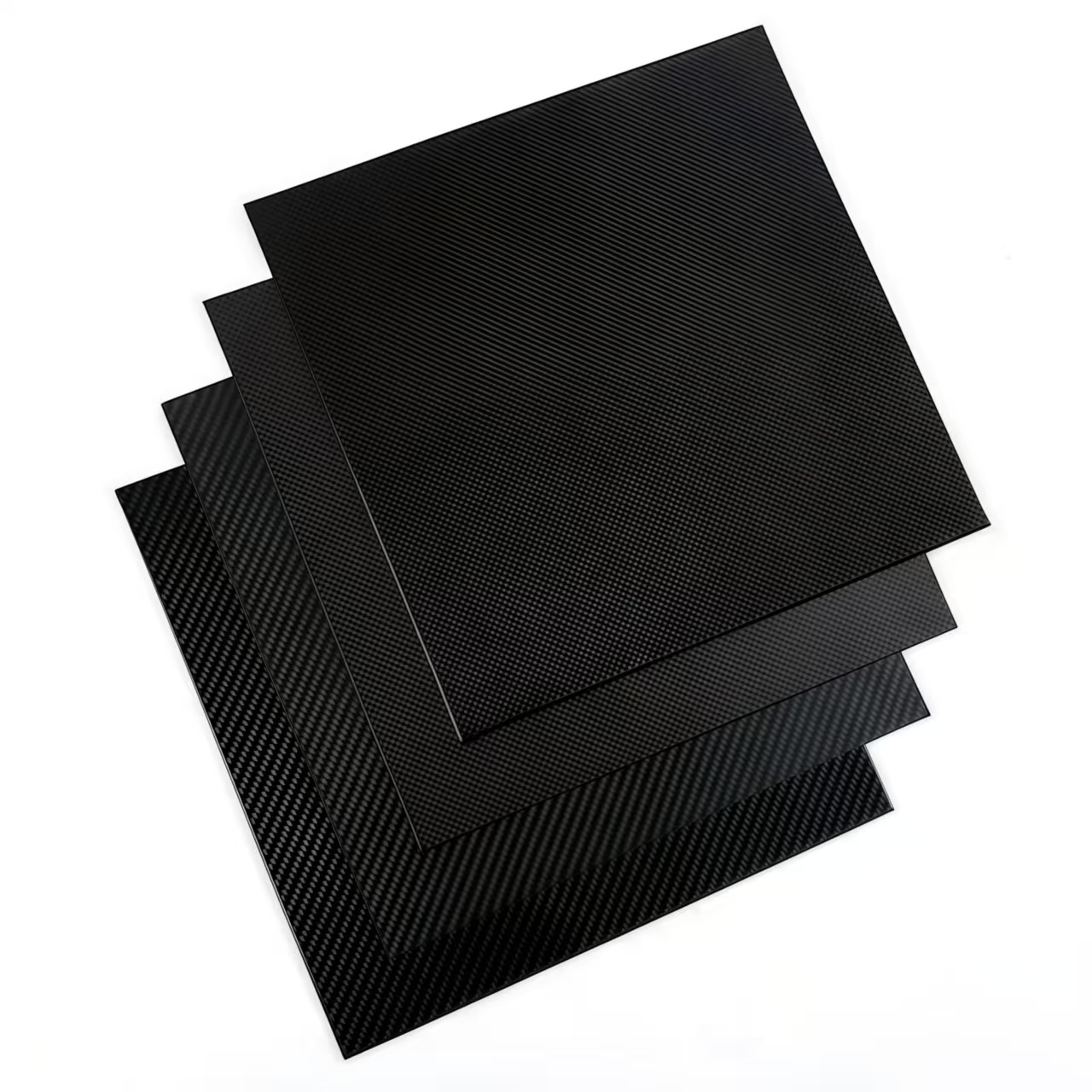

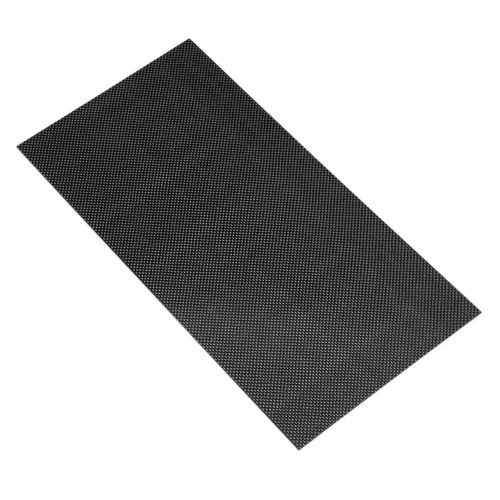

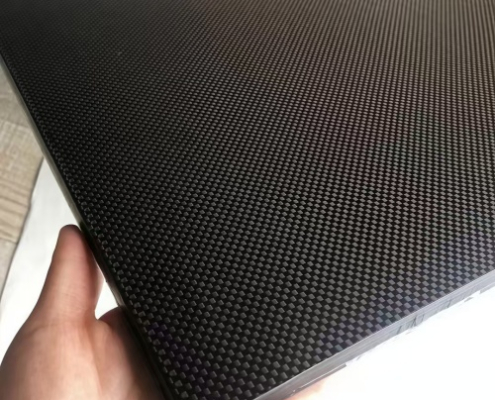

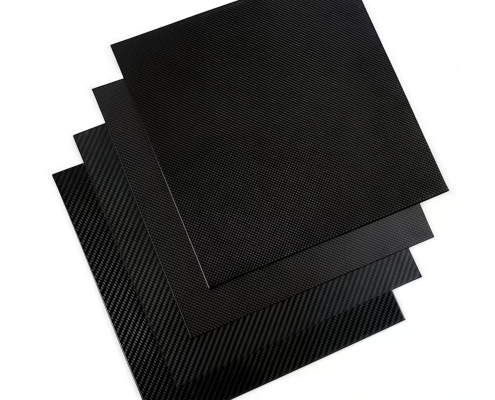

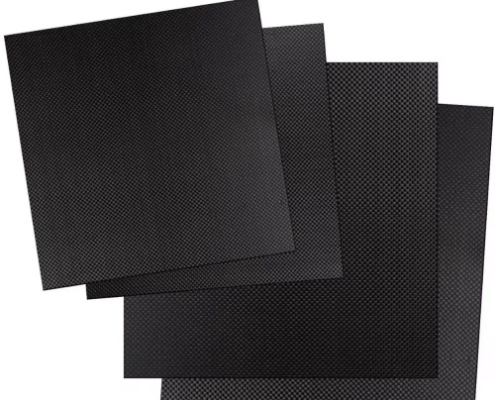

Carbon fiber is a composite material composed of high-strength fibers with a carbon content above 90%. The “3K” in 3K carbon fiber board refers to the weaving specification where each bundle of carbon fiber contains 3,000 single filaments . The plain weave is the most classic weaving pattern for carbon fiber, creating a checkerboard texture on the surface, while the glossy treatment gives the board a mirror-like finish .
Carbon fiber boards are manufactured using carbon fiber prepreg (pre-impregnated fabric) through ply design, layered lamination, and curing under high temperature and pressure . This manufacturing process ensures the board possesses excellent mechanical properties such as high tensile strength, corrosion resistance, shock resistance, and impact resistance . Compared to traditional metal materials, 3K plain weave glossy carbon fiber boards are not only fashionable in appearance but also represent a qualitative leap in performance, making them an ideal metal replacement in modern industry .
Product Details
1.Technical Parameters
3K plain weave glossy carbon fiber boards have precise technical parameters that determine their outstanding performance :
| Parameter Category | Specific Parameter | Parameter Value / Description |
| Basic Parameters | Material | Carbon Fiber |
| Density | 1.5 – 1.6 g/cm³ (Only 1/5 of steel) | |
| Mechanical Properties | Tensile Strength | Up to 4000 MPa |
| Elastic Modulus | 240 GPa | |
| Thermal Properties | Coefficient of Thermal Expansion | -0.55 × 10⁻⁶/℃ |
| Surface Treatment | Style | 3K Plain Weave Glossy (Mirror effect, clear texture) |
| Dimensions | Thickness Range | 0.2mm – 50mm |
| Maximum Size | Up to 2600mm × 800mm |
3K plain weave glossy carbon fiber boards can be customized according to customer requirements, including dimensions, thickness, and surface finish .
This flexibility allows them to meet specific needs across different industries, from small electronic products to large industrial equipment .
2.Product Advantages
High Strength-to-Weight Ratio
The most significant advantage of carbon fiber boards is their exceptional strength-to-weight ratio.
They weigh only a quarter of steel but are 8-10 times stronger .
This characteristic makes carbon fiber boards the ideal choice for applications where weight reduction is critical.
For instance, in the aerospace sector, saving even a gram can lead to significant performance improvements and fuel savings .
Strong Corrosion Resistance
Carbon fiber boards offer excellent corrosion resistance, enabling them to withstand erosion from chemicals such as acids, alkalis, and salts .
This property allows for long-term use in harsh environments like marine settings or the chemical industry, without the rust or corrosion typical of metal materials, thereby significantly extending product service life .
High-Temperature Resistance
Carbon fiber boards possess good high-temperature resistance, maintaining stable performance at elevated temperatures without deforming or degrading due to thermal changes .
This meets the demands of high-temperature application scenarios such as aerospace and automotive engine compartments .
Aesthetic and Practical
The 3K plain weave glossy carbon fiber board boasts not only excellent performance but also an exquisite appearance.
Its surface is bright like a mirror with clear textures, offering a strong sense of modernity and technological appeal .
This feature allows carbon fiber boards to shine in products where appearance is important, achieving a perfect combination of functionality and aesthetics .
3.Application Scenarios
Industrial Manufacturing
In the field of industrial manufacturing, 3K plain weave glossy carbon fiber boards are widely used in mechanical parts, robotic components, and industrial equipment .
They can be used for robot arms, robot chassis, and high-end equipment accessories, reducing equipment weight and improving operational efficiency and precision .
Automotive and Transportation
The automotive industry extensively uses 3K plain weave glossy carbon fiber boards for lightweight design, applied in automotive modification parts, body panels, and internal structural components .
In the transportation sector, using carbon fiber boards for vehicle interiors and components can reduce vehicle weight, lower energy consumption, and improve operational efficiency .
Medical Devices
Medical devices are an important application area for 3K plain weave glossy carbon fiber boards, especially in high-end medical equipment .
They are used in CT tabletops, X-ray grid shelves, DR detector panels, and other medical equipment.
Their low X-ray absorption characteristics contribute to improved imaging quality, requiring lower radiation doses for clear images .
Sports Equipment and Model Making
In the sports equipment field, 3K plain weave glossy carbon fiber boards are used to make high-end sports gear such as bicycle frames, skis, and rackets .
Simultaneously, in model making, carbon fiber boards are ideal materials for high-end models like aerial models and car models, providing excellent strength and light weight .
Aerospace and UAVs/Drones
The aerospace field has extremely high requirements for material performance, and 3K plain weave glossy carbon fiber boards play an irreplaceable role in this area .
Particularly in the UAV/drone sector, they are used for central plates, frames, and other components, significantly improving flight performance and endurance .
Conclusion
In the era of lightweighting, the advantage of a material becomes the product’s winning edge.
The 3K plain weave glossy carbon fiber board, as a high-end composite material, is widely used in numerous fields due to its unique performance and aesthetic appeal.
This board combines the high strength of carbon fiber with the beauty of the glossy plain weave, achieving a perfect integration of function and aesthetics .
